23AWG 4PR CAT6 Ethernet Solid BC Data Tuff LSZH #BEL7953T

Zoom In Zoom Out Enlarge

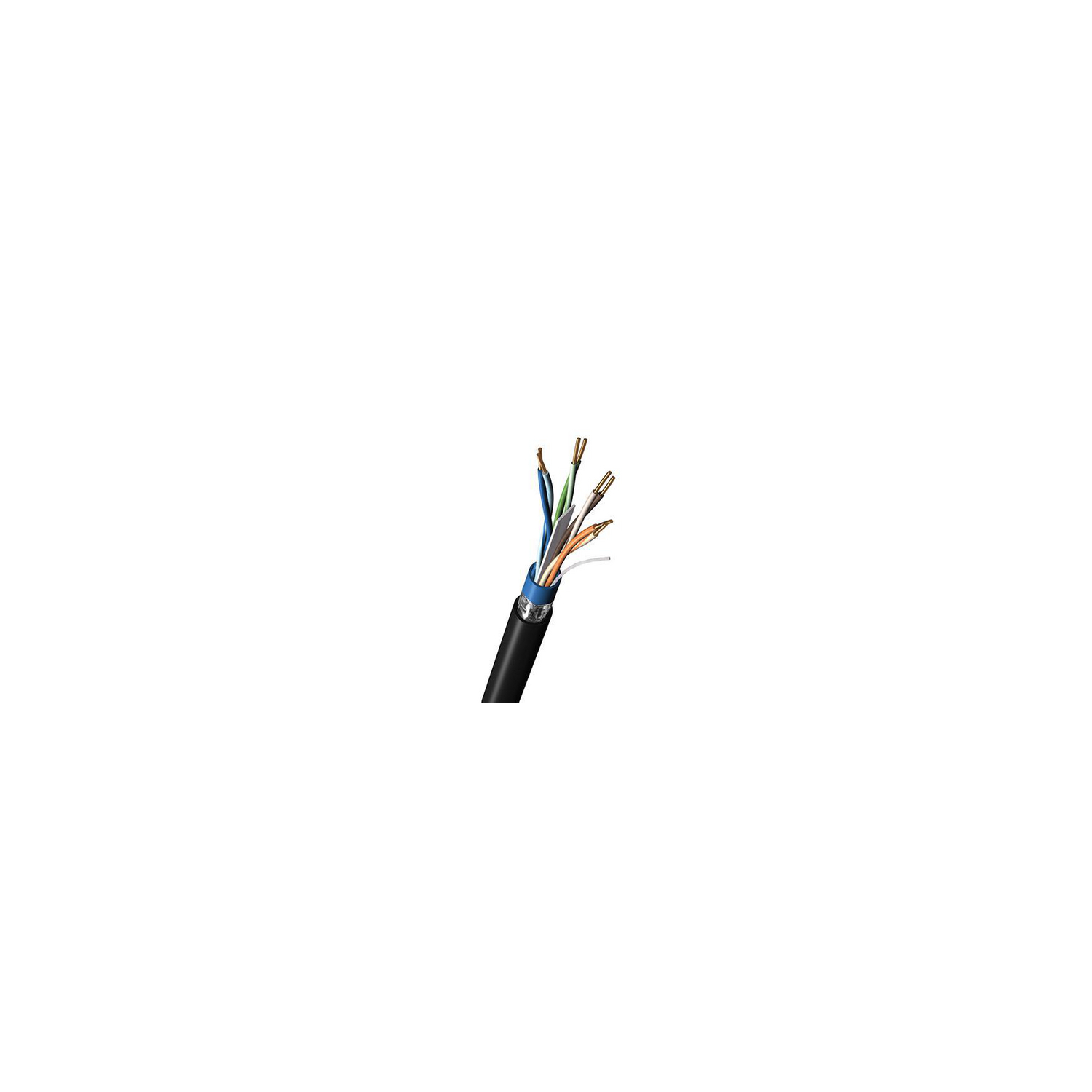

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

Brochure

23AWG 4PR CAT6 Ethernet Solid BC Data Tuff LSZH

Part #: BEL7953T

Qty *

x Length (ft) *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Sku	BEL7953T
Category Features	American Bureau of Shipping (ABS) Approved
Category Description	Industrial Ethernet Cat 6, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, LSZH Jacket, Overall Beldfoil® Shield, LSZH Jacket, Flame Barrier, LSZH Outer Jacket, NFPA 130, CMG-ST1, FT4
Product Category	Industrial Ethernet Cable
Max Operating Temperature	-30°C To +60°C
Material	LSZH - Low Smoke Zero Halogen
Jacket Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Outer Jacket	0.487 in (12.4 mm)

Shipboard, transportation, outdoor, in cabinet with high volt devices, such as motor control center, mining, noisy environment, harsh environment, IIoT, factory or process
automation, IP cameras and devices, data communication, etc.

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated, UV Resistance • Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202 • NEC / UL Compliance: Article 800, CMG-ST1 • CEC / C(UL) Compliance: CMG-ST1 • Data Category: Category 6 • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6 • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) • APAC Compliance: China RoHS II (GB/T 26572-2011) • Other Standard Compliance(s): NFPA 130
