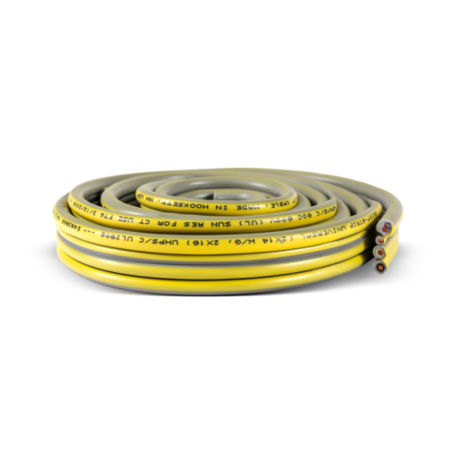

Duckt-Strip Universal #145STRMSR

Zoom In Zoom Out Enlarge

*Product images are for illustrative purposes only and may differ from the actual product.

Download Spec Sheet

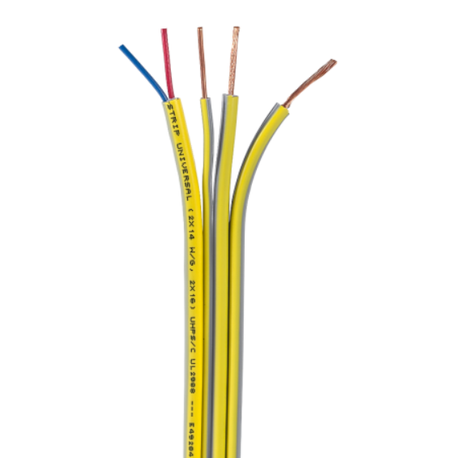

Duckt-Strip Universal

Part #: 145STRMSR

Qty *

x Length (ft) *

Please select all above options before adding to cart.

Construction Applications Standards Q&A

Construction
Sku	145STRMSR
Cable Height Inches	0.75
No. of Conductors	3
AWG	14
Ground Wire Insulation Thickness Mils	9
Ground Wire Stranding	19
Overall Cable Width Inches	7/8
Put Ups	14AWG: 500' Wood Reels 250' Pull Boxes 16AWG: 500' Wood Reels 250' Pull Boxes 14-04DUCKT-CTRPK: 50' Contractor Packs with indoor and outdoor connectors.
Insulation Jacket	Red, White, or Black colored THHN
Phase Conductor Stranding	19
Phase Conductor Insulation Thickness Mils	30
Jacket Description	Conductors are covered with a gray and yellow, sunlight resistant, outdoor rated, direct buried approved, PVC jacket with Rip-N-Strip™ technology
Overall Dimensions Weight	31

Duckt-Strip™ is a patented, Type UF-B (Underground Feeder Cable) • Designed for use in the installation of ductless mini-split air conditioning systems. • Duckt-Strip™ meets all standards & compliances for a ductless mini-split installation, and is UL approved. • This cable is the only one that is designed specifically for in-the-wall & through-the-wall use.

UL 2988, Universal Hybrid Power and Signal / Control cable, UHPS/C • ASTM-B3 and ASTM B8 • Federal Specification A-A-59544 • This product meets the US Government “Buy American” compliance • Provisions of ARRA 2009; Section 1605 • Patented Product
